4000kg Portable Scissor Lift Tables Max Height 1800mm

Ask Lasest Price
Brand Name :	JS
Model Number :	ES60D04
Certification :	CE,SGS
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000 sets per month

Add to Cart

Product Details
Company Profile

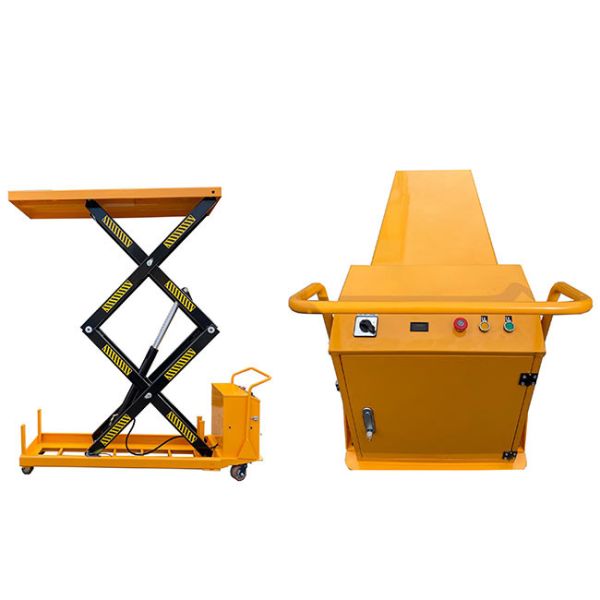

4000kg Portable Scissor Lift Tables Max Height 1800mm

Hydraulic Rated Lifting Capacity 4000Kg Max Height 1800Mm Portable Scissor Lift Tables

Portable Hydraulic Scissor Lift Table

JIASHENG can provide customized lifting platform/job positioner with flexible and strong features, ideal for heavy industry environments, office buildings and pharmaceutical plants. Customized lifts can carry up to 4000 kg of cargo weight according to customer requirements.

JIASHENG hydraulic lifting platform adopts industrial design, equipped with high quality components, standard with two brake casters, which can prevent the lifting platform from moving during unloading. In addition, the heavy-duty hydraulic pump mechanism is equipped with a reduction valve to ensure smooth movement during lifting and increase safety during operation.

Model	Rated Lifting capacity (kg)	Min/Max Height (mm)	Platform Size (mm)	Base Size (mm)	Elevating Time (s)	Power Parameter	N.W. (kg)
ES60D0101	1000	205/990	1300x820	1240x640	20-25	380V/Hz	160
ES60D0102	1000	205/990	1600x1000	1240x640	20-25	380V/Hz	186
ES60D0103	1000	240/1300	1700x850	1580x640	30-35	380V/Hz	200
ES60D0104	1000	240/1300	1700x1000	1580x640	30-35	380V/Hz	210
ES60D0105	1000	240/1300	2000x850	1580x640	30-35	380V/Hz	212
ES60D0106	1000	240/1300	2000x1000	1580x640	30-35	380V/Hz	223
ES60D0107	1000	240/1300	1700x1500	1580x1320	30-40	380V/Hz	365
ES60D0108	1000	240/1300	2000x1700	1580x1320	30-40	380V/Hz	430
ES60D0201	2000	230/1300	1300x850	1220x785	20-25	380V/Hz	235
ES60D0202	2000	230/1300	1600x1000	1220x785	20-25	380V/Hz	268
ES60D0203	2000	250/1300	1700x850	1600x785	25-35	380V/Hz	289
ES60D0204	2000	250/1300	1700x1000	1600x785	25-35	380V/Hz	300
ES60D0205	2000	250/1300	2000x850	1600x785	25-35	380V/Hz	300
ES60D0206	2000	250/1300	2000x1000	1600x785	25-35	380V/Hz	315
ES60D0207	2000	250/1400	1700x1500	1600x1435	25-35	380V/Hz	415
ES60D0208	2000	250/1400	2000x1800	1600x1435	25-35	380V/Hz	500
ES60D0401	4000	240/1050	1700x1200	1600x900	30-40	380V/Hz	375
ES60D0402	4000	240/1050	2000x1200	1600x900	30-40	380V/Hz	405
ES60D0403	4000	300/1400	2000x1000	1980x900	30-40	380V/Hz	470
ES60D0404	4000	300/1400	2000x1200	1980x900	35-40	380V/Hz	490
ES60D0405	4000	300/1400	2200x1000	1980x900	35-40	380V/Hz	480
ES60D0406	4000	300/1400	2200x1200	1980x900	35-40	380V/Hz	505
ES60D0407	4000	350/1300	1700x1500	1620x1400	35-45	380V/Hz	570
ES60D0408	4000	350/1300	2200x1800	1620x1400	35-45	380V/Hz	655

Portable Scissor Lift Tables 24 Control box with 24V battery back up

Control box with 24V battery back up Waterproof control box are bulti-in 24V back up battery. The power is 3KW for lift tables up to 4000kgs or customized as per customer's requirments

Ideal Heavy-duty torsional steel frame Flexible and compact lift table/work positioner. Suitable for loads up to 4000 kg in Heavy industrial environments, office buildings and pharmaceutical plants.

Workshop


Scan the QR code to contact us for quick reply for the Scissor lift tables
